HS230 Programmable Unipolar Hall Current Sensor
- Product Detail
The HS230 is a second generation programmable Hall effect sensor designed in mixed signal BiCMOS technology. The device integrates a voltage regulator, a Hall sensor with an advanced offset cancellation system, and an open-drain output driver, all in a single package.
With built-in reverse protection, no series diode is required on the power line, so even remote sensors can operate at low voltages as low as 2.5V while being reverse voltage tolerant. The open-drain output is protected against short circuits by built-in current limiting.
The HS230 has a set of programmable parameters that can be adjusted in the application to achieve the highest system accuracy by compensating for mechanical tolerances.

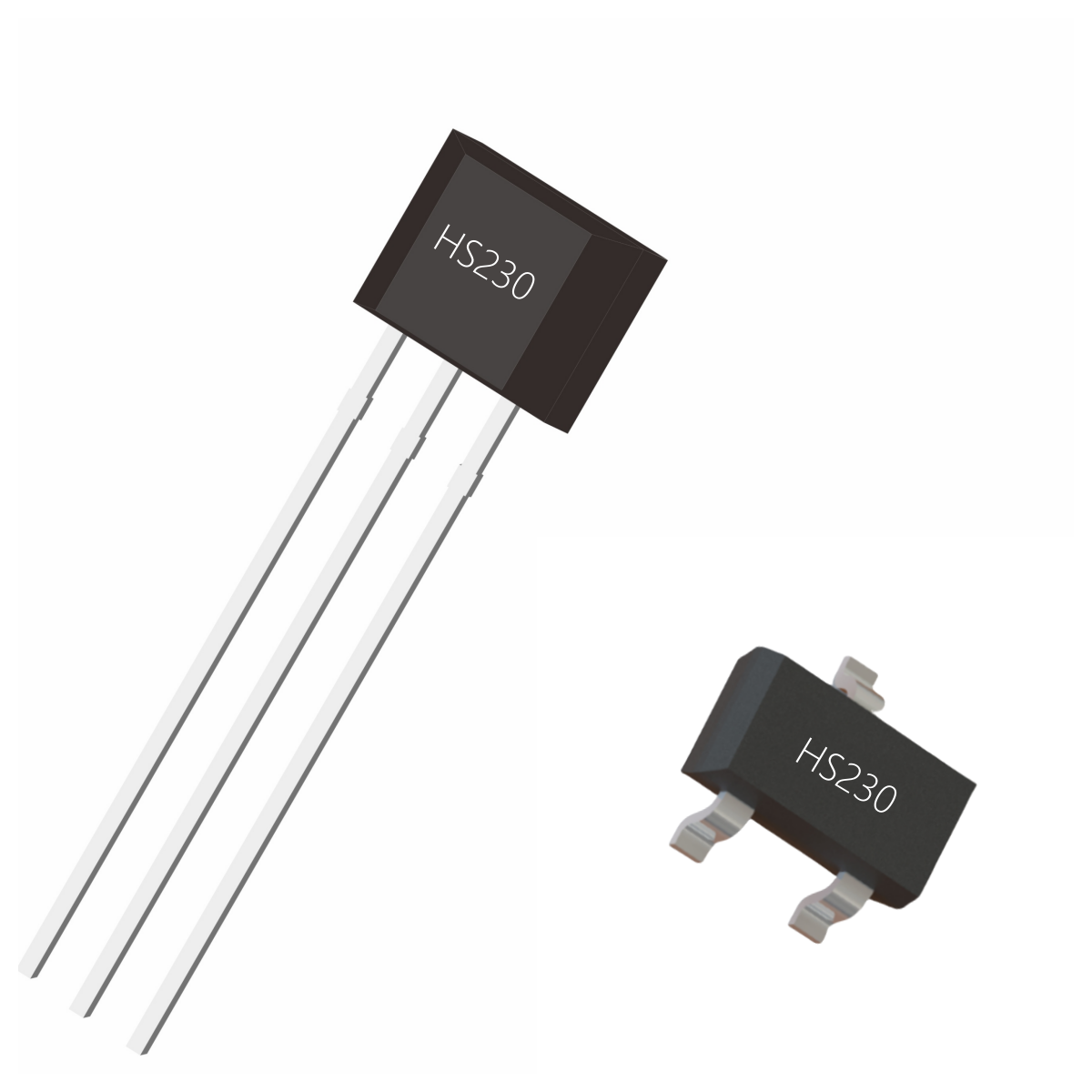

The IC is available in a SOT package for surface mount and a single in-line TO-9 flat package for direct insertion. Both packages are lead (Pb) free with 100% matte tin lead frame plating.
Product features
1. Programmable digital unipolar Hall sensor
2. Support wide voltage range (2.5 to 24V)
3. Factory programming at the end of the production line
4. Strong pressure resistance
5. High chopping frequency
6. Strong EMC performance
7. Wide operating temperature range
8. Strong reliability
9. Small size package
2. Support wide voltage range (2.5 to 24V)
3. Factory programming at the end of the production line
4. Strong pressure resistance
5. High chopping frequency
6. Strong EMC performance
7. Wide operating temperature range
8. Strong reliability
9. Small size package
Main applications
1. Automotive, consumer, industrial solid-state switches
2. Circuit breakers
3. Speed detection
4. Linear position detection
5. Angular position detection
6. Proximity detection

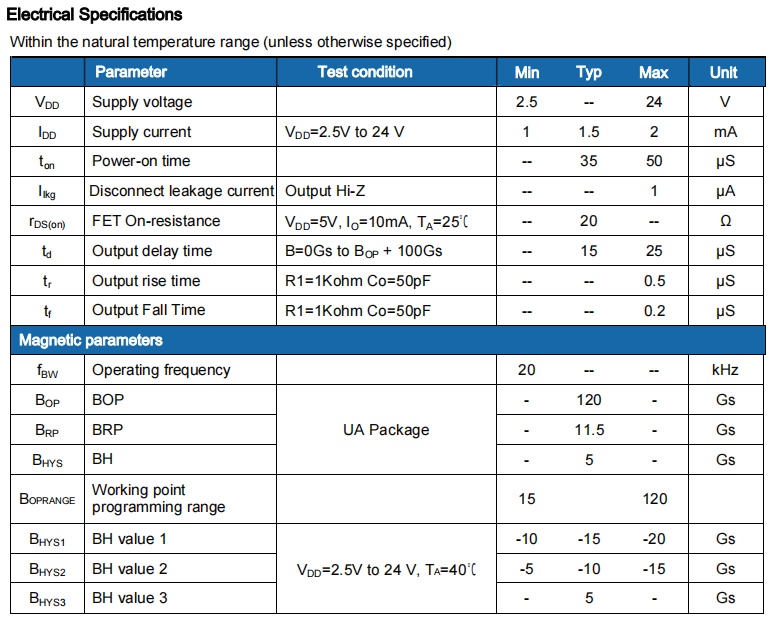

Product parameters
