HS264 is a micro-power, high-sensitivity unipolar Hall switch sensor. The internal circuit of HS264 includes a Hall chip, a voltage regulator module, a signal amplification processing module, a dynamic offset elimination module, a latch module and a CMOS output stage.
Due to the use of advanced Bi-CMOS technology and the overall optimized circuit structure, the product obtains extremely low input error feedback.
The product adopts dynamic offset elimination technology, which can eliminate the offset voltage caused by package stress, thermal stress, and temperature gradient, and improve the consistency of the device.
At the same time, the product adopts a very miniaturized packaging process, which makes the product have extremely high performance and market advantages.

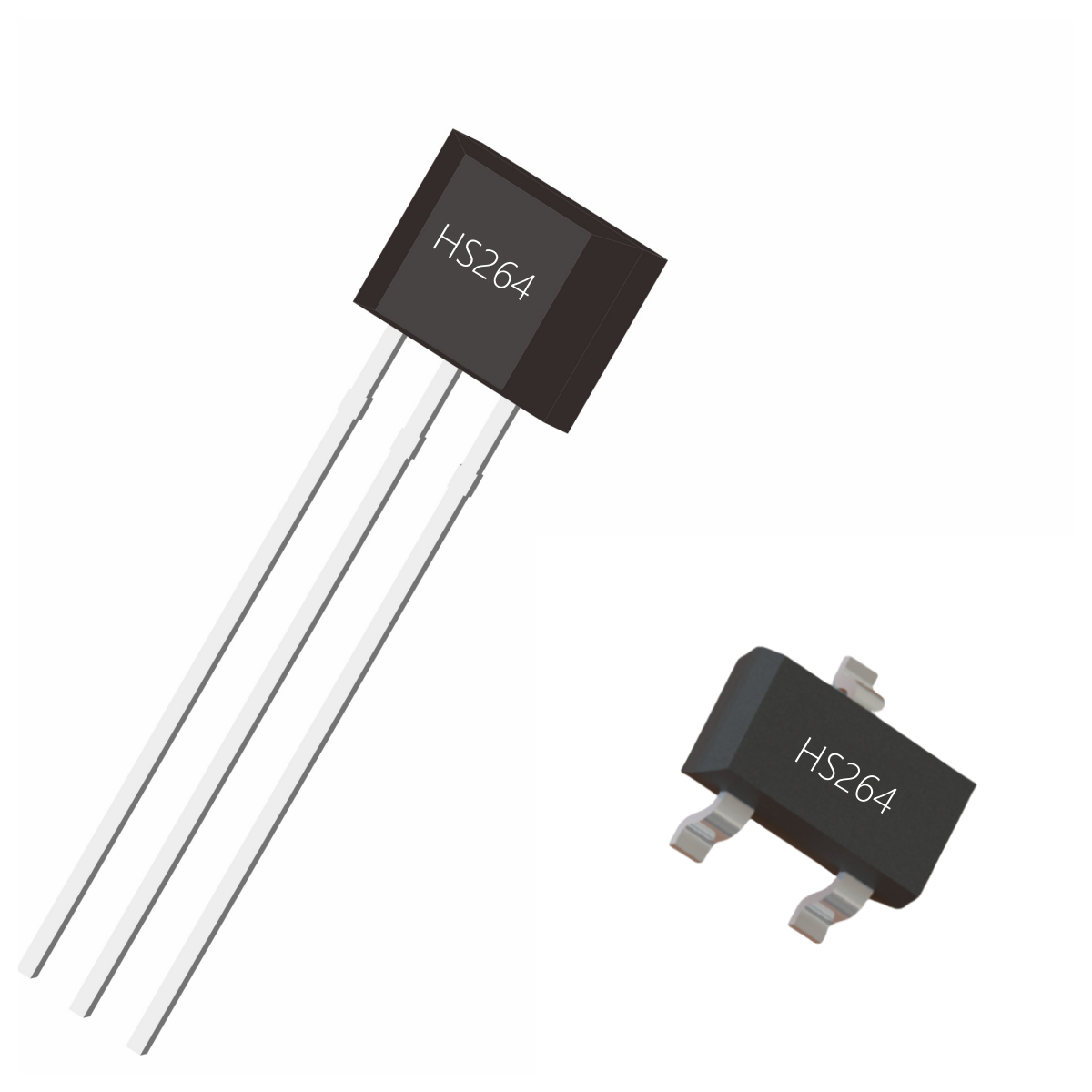

Three packages are available: TSOT23-3, TO-92S and DFN4L, with an operating temperature range of -40~150℃.
